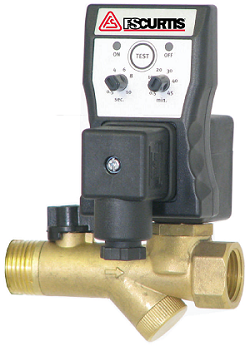

FS-Curtis FVA536-1 Automatic Timer Drain 300PSI Max

Categories: ,

Item #: FVA536-1

  • 300 PSI Max Working Pressure
  • 1/4″ NPT Inlet
  • 1/2″ NPT Outlet
  • 115V Standard

*FREIGHT INCLUDED

Your Price:
$495.00

All Major Credit Cards Accepted
Quantity:
Share Product:
  • Pictures shown are for illustration purposes only. Actual product may vary due to product specifications.
  • All prices on this website are subject to change without notice. Whilst we make every effort to provide you with the most accurate, up-to-date information, occasionally, one or more items on our website may be mis-priced. In the event a product is listed at an incorrect price due to typographical, photographic, or technical error or error in pricing information received from our manufacturers, Air Power Equipment Co. shall have the right to refuse or cancel any orders placed for product listed at the incorrect price.
Weight 5 lbs

TECHNICAL SPECIFICATIONS
Maximum compressor capacity Any size
Pressure range 0 – 16 bar 0 – 230 psi
Supply voltage options 12 – 380 VAC/DC 50/60Hz (see specifications on timer and coil)
Medium temperature 1 – 50 °C 34 – 122 °F
Ambient temperature 1 – 50 °C 34 – 122 °F
Timer cycle range (ON / OFF) 0.5 – 10 seconds / 0.5 – 45 minutes(depending on timer model)
Timer PCB SMD technology
Timer cycle indication LED
Test feature Yes
Valve type 2/2 way, direct acting
Valve orifice 4 mm 0,157”
Valve seals FPM
Inlet/Outlet connections 1/4” & 1/2″ inlet, 1/2” outlet (BSP or NPT)
Inlet connection height 1 cm 0,4”
Serviceable valve Yes
Valve housing material Brass, Stainless steel
Power connection DIN 43650-A
Environmental protection IP65 (NEMA4)

Weight 5 lbs

TECHNICAL SPECIFICATIONS
Maximum compressor capacity Any size
Pressure range 0 – 16 bar 0 – 230 psi
Supply voltage options 12 – 380 VAC/DC 50/60Hz (see specifications on timer and coil)
Medium temperature 1 – 50 °C 34 – 122 °F
Ambient temperature 1 – 50 °C 34 – 122 °F
Timer cycle range (ON / OFF) 0.5 – 10 seconds / 0.5 – 45 minutes(depending on timer model)
Timer PCB SMD technology
Timer cycle indication LED
Test feature Yes
Valve type 2/2 way, direct acting
Valve orifice 4 mm 0,157”
Valve seals FPM
Inlet/Outlet connections 1/4” & 1/2″ inlet, 1/2” outlet (BSP or NPT)
Inlet connection height 1 cm 0,4”
Serviceable valve Yes
Valve housing material Brass, Stainless steel
Power connection DIN 43650-A
Environmental protection IP65 (NEMA4)
